Description
Ceratizit Article Number: 1589415909
Ceratizit Material Number: 14154739
Ceratizit Komet Number (Unpacked): V57 61590
Ceratizit Komet Number (Packed): V5761590
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 0.75x2.25/W2910/0.625/2.500 R CoreLine - Indexable Drill - 1589415909 | |
| EDP # | 0759140 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 10.0 oz | 280 g |
| Productsystem | Trigon | |
| Machining process - Main Application | Solid drilling | |

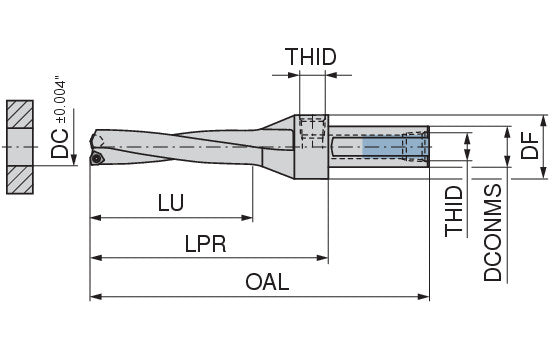

| Cutting diameter / DC | 0.6250" | 15.880 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Flange diameter / DF | 1.1299" | 28.700 mm |
| Overall length / OAL | 6.1280" | 155.650 mm |
| Protruding length / LPR | 3.8780" | 98.500 mm |
| Usable length / LU | 2.5000" | 63.500 mm |
| Insert | WOEX 030204 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 0.62 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
