Description
Ceratizit Article Number: 1589417909
Ceratizit Material Number: 14154741
Ceratizit Komet Number (Unpacked): V57 61790
Ceratizit Komet Number (Packed): V5761790
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 0.75x2.25/W2910/0.703/2.812 R CoreLine - Indexable Drill - 1589417909 | |
| EDP # | 0759142 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 11.0 oz | 298 g |
| Productsystem | Trigon | |
| Machining process - Main Application | Solid drilling | |

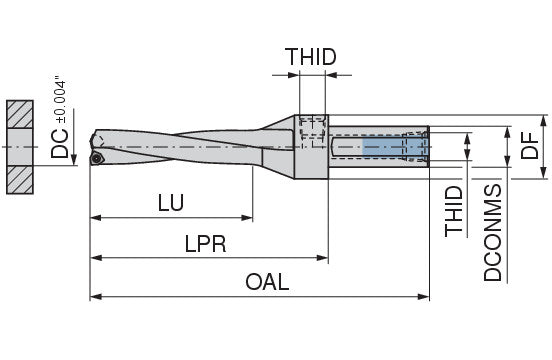

| Cutting diameter / DC | 0.7030" | 17.860 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Flange diameter / DF | 1.1299" | 28.700 mm |
| Overall length / OAL | 6.4390" | 163.550 mm |
| Protruding length / LPR | 4.1890" | 106.400 mm |
| Usable length / LU | 2.8120" | 71.420 mm |
| Insert | WOEX 030204 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 0.62 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
