Description
Ceratizit Article Number: 1587929401
Ceratizit Material Number: 14158235
Ceratizit Komet Number (Unpacked): U11 42942
Ceratizit Komet Number (Packed): U1142942
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.25x3.25/W8332/1.156/2.323R CoreLine - Indexable Drill - 1587929401 | |
| EDP # | 0759177 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 25.0 oz | 720 g |
| Productsystem | Quatron | |

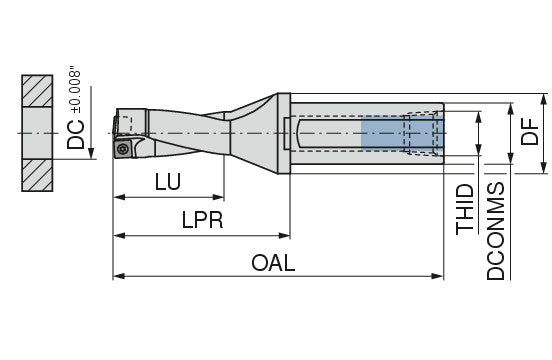

| Cutting diameter / DC | 1.1560" | 29.360 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5400" | 39.120 mm |
| Overall length / OAL | 6.5570" | 166.550 mm |
| Protruding length / LPR | 3.3070" | 84.000 mm |
| Usable length / LU | 2.3230" | 59.000 mm |
| Insert | SOEX 090408 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 2.25 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
