Description
Ceratizit Article Number: 1587931801
Ceratizit Material Number: 14158238
Ceratizit Komet Number (Unpacked): U11 43182
Ceratizit Komet Number (Packed): U1143182
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.25x3.25/W8332/1.250/2.520R KOMET - Indexable Insert Drill 1587931801 | |
| EDP # | 0759180 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 24.0 oz | 681 g |

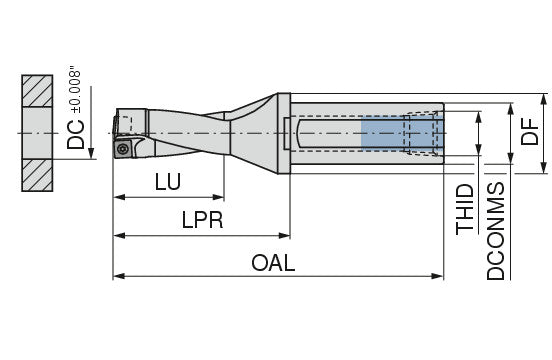

| Cutting diameter / DC | 1.2500" | 31.750 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5400" | 39.116 mm |
| Overall length / OAL | 6.9110" | 175.539 mm |
| Protruding length / LPR | 3.6610" | 92.989 mm |
| Usable length / LU | 2.5200" | 64.008 mm |
| Insert | SOEX 090408 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 2.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
