Description
Ceratizit Article Number: 1586038100
Ceratizit Material Number: 14171394
Ceratizit Komet Number (Unpacked): V46 53810
Ceratizit Komet Number (Packed): V4653810
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB CENTRON DH 1.500/38.1 CoreLine - Drill Head Ø 0.812-2.500 Inch - 1586038100 | |
| EDP # | 0759256 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 140 g |
| Productsystem | Centron | |
| Machining process - Main Application | Drilling on uneven surfaces | |

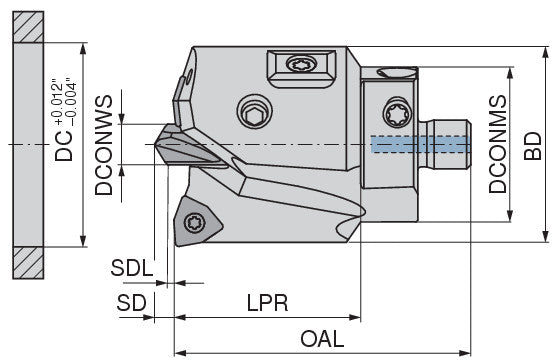

| Cutting diameter / DC | 1.5000" | 38.100 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.2360" | 5.990 mm |
| Step distance / SD | 0.1040" | 2.640 mm |
| Step diameter length / SDL | 0.0430" | 1.090 mm |
| Protruding length / LPR | 0.9100" | 23.110 mm |
| Overall length / OAL | 1.5400" | 39.120 mm |
| Neck diameter (BD) / BD | 1.4610" | 37.110 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Coupling Size | 32.0000" | 812.800 mm |
| torque moment | 1.28 Nm | |
| Insert | WOEX 05T304 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
