Description
Ceratizit Article Number: 1587323856
Ceratizit Material Number: 14184787
Ceratizit Komet Number (Unpacked): U40 72380
Ceratizit Komet Number (Packed): U4072380
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron PSC 63/W8024/23,8/72/R - Indexable Insert Drill 1587323856 | |
| EDP # | 0759336 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 37.0 oz | 1062 g |
| Machining process - Main Application | Chain drilling | |

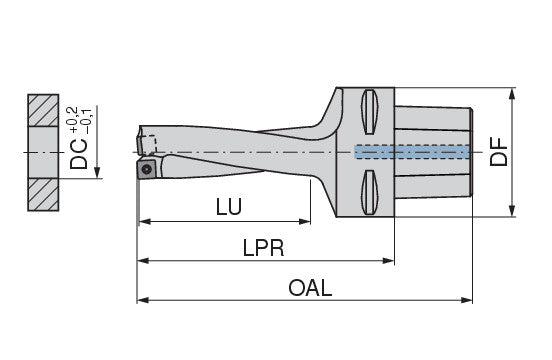

| Cutting diameter / DC | 0.9370" | 23.800 mm |
| Flange diameter / DF | 2.4803" | 63.000 mm |
| Overall length / OAL | 5.9843" | 152.000 mm |
| Protruding length / LPR | 4.4882" | 114.000 mm |
| Usable length / LU | 2.8346" | 72.000 mm |
| Insert | SOGX 080308 | |
| torque moment | 1.28 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
