Description
Ceratizit Article Number: 1587944595
Ceratizit Material Number: 14192321
Ceratizit Komet Number (Unpacked): U10 74450
Ceratizit Komet Number (Packed): U1074450
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron ABS50/W8344/1.750/3.465 R CoreLine - Indexable Drill - 1587944595 | |
| EDP # | 0759377 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 47.0 oz | 1331 g |
| Productsystem | Quatron | |

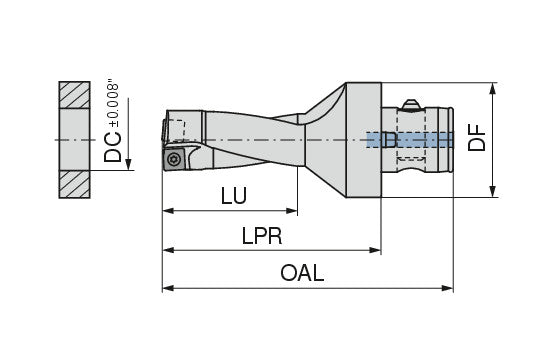

| Cutting diameter / DC | 1.7500" | 44.450 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 6.6530" | 168.990 mm |
| Protruding length / LPR | 5.4330" | 138.000 mm |
| Usable length / LU | 3.4650" | 88.010 mm |
| Insert | SOEX 120508 | |
| torque moment | 6.25 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
