Ceratizit KUB Quatron ABS80/W8332/61,9/124/R CoreLine - Indexable Drill - 1587961998 (0759408) [SKU:1587961998]

Ceratizit KUB Quatron ABS80/W8332/61,9/124/R CoreLine - Indexable Drill - 1587961998 (0759408) [SKU:1587961998]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 1587961998

Ceratizit Material Number: 14195455

Ceratizit Komet Number (Unpacked): U10 96190

Ceratizit Komet Number (Packed): U1096190

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit KUB Quatron ABS80/W8332/61,9/124/R CoreLine - Indexable Drill - 1587961998
EDP # 0759408
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) All Materials (White)
Weight (1 pc.) 116.0 oz 3285 g
Product System Quatron

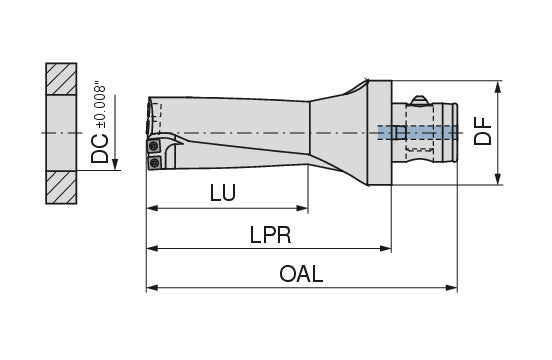

Cutting diameter / DC 2.4370" 61.900 mm
Mounting spigot diameter / DCONMS 1.8110" 46.000 mm
Flange diameter / DF 3.1496" 80.000 mm
Overall length / OAL 8.7400" 222.000 mm
Protruding length / LPR 7.0470" 178.990 mm
Usable length / LU 4.8820" 124.000 mm
Insert SOEX 090408
torque moment 2.25 Nm


Tool Form:

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
