Description
Ceratizit Article Number: 6284333591
Ceratizit Material Number: 14205812
Ceratizit Komet Number (Unpacked): G01 23521
Ceratizit Komet Number (Packed): G0123521
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit Doppelschneider ABS100 VDF230 MMS SpinTools - Adjustable Fine Twin Cutter 90° - Twin G01 6284333591 | |
| EDP # | 0759431 | |
| Weight (1 pc.) | 313.0 oz | 8882 g |
| Product-Carbon-Footprint | E | |
| Productsystem | Twin G01 | |

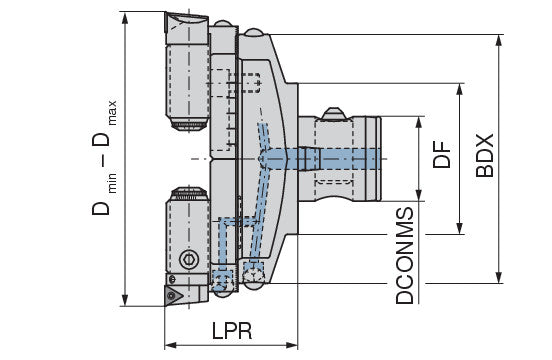

| Dmin - Dmax | 261 - 335 | |
| Machine interface size | ABS 100 | |
| Mounting spigot diameter / DCONMS | 2.2047" | 56.000 mm |
| Body diameter maximum / BDX | 9.0551" | 230.000 mm |
| Flange diameter / DF | 3.9370" | 100.000 mm |
| Protruding length / LPR | 3.4646" | 88.000 mm |
| Shank length / LS | 2.1654" | 55.000 mm |
| Functional length / LF | 3.4646" | 88.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
