Description
Ceratizit Article Number: 5819619000
Ceratizit Material Number: 14235736
Ceratizit Komet Number (Unpacked): F10 20151
Ceratizit Komet Number (Packed): F1020151
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

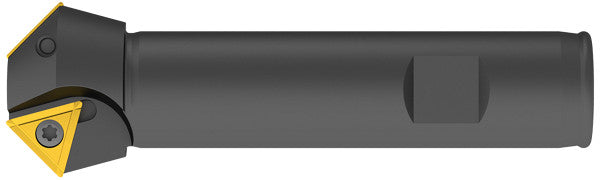

| Name | Ceratizit KWS M 10-5/8 CoreLine Insert Countersink 90° WPS 5819619000 | |
| EDP # | 0759538 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 147 g |
| for screws | M10 | |

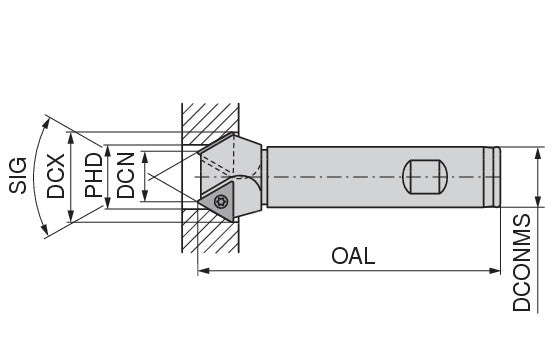

| Cutting diameter maximum / DCX | 0.7480" | 19.000 mm |
| Cutting diameter minimum / DCN | 0.2760" | 7.010 mm |
| Premachined hole diameter / PHD | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS | 0.6250" | 15.880 mm |
| Overall length / OAL | 3.9400" | 100.080 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| torque moment | 1.28 Nm | |
| Insert | TOHX 090204 | |
| SIG / SIG | 90 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
