Description
Ceratizit Article Number: 5819626000
Ceratizit Material Number: 14235738
Ceratizit Komet Number (Unpacked): F10 20171
Ceratizit Komet Number (Packed): F1020171
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

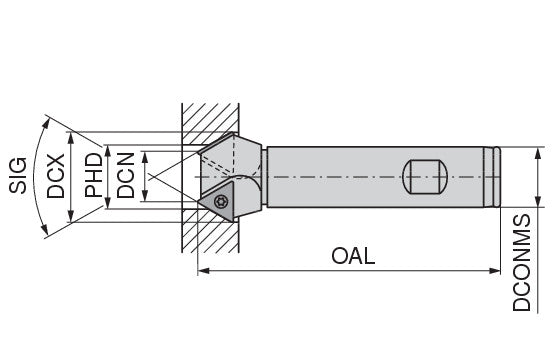

| Properties | ||
|---|---|---|
| Name | Ceratizit KWS M 14-5/8 CoreLine Insert Countersink 90° WPS 5819626000 | |
| EDP # | 0759540 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 169 g |
| for screws | M14 | |
| Cutting diameter maximum / DCX | 1.0240" | 26.010 mm |
| Cutting diameter minimum / DCN | 0.4330" | 11.000 mm |
| Premachined hole diameter / PHD | 0.4720" | 11.990 mm |
| Mounting spigot diameter / DCONMS | 0.6250" | 15.880 mm |
| Overall length / OAL | 3.9400" | 100.080 mm |
| Peripheral effective cutting edge count / ZEFP | 1.0000" | 25.400 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| torque moment | 1.28 Nm | |
| Insert | TOHX 090204 | |
| SIG / SIG | 90 ° | |
