Description
Ceratizit Article Number: 5819634000
Ceratizit Material Number: 14235740
Ceratizit Komet Number (Unpacked): F10 20191
Ceratizit Komet Number (Packed): F1020191
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KWS M 18-3/4 Insert Countersink 90° 5819634000 | |
| EDP # | 0759542 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 256 g |
| for screws | M18 | |

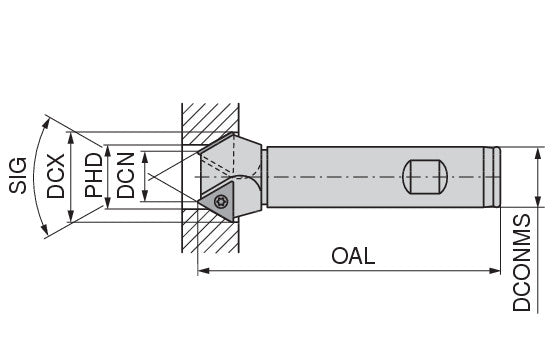

| Cutting diameter maximum / DCX | 1.3390" | 34.011 mm |
| Cutting diameter minimum / DCN | 0.6300" | 16.002 mm |
| Premachined hole diameter / PHD | 0.6690" | 16.993 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Overall length / OAL | 3.9400" | 100.076 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Face mounted insert count / ZNF | 2 | |
| torque moment | 2.8 Nm | |
| Insert | TOHX 140305 | |
| SIG / SIG | 90 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
