Ceratizit KUB Quatron 1.25x3.25/W8344/1.500/4.606R CoreLine - Indexable Drill - 1588038101 (0759569) [SKU:1588038101]

Ceratizit KUB Quatron 1.25x3.25/W8344/1.500/4.606R CoreLine - Indexable Drill - 1588038101 (0759569) [SKU:1588038101]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 1588038101

Ceratizit Material Number: 14238857

Ceratizit Komet Number (Unpacked): U12 23812

Ceratizit Komet Number (Packed): U1223812

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit KUB Quatron 1.25x3.25/W8344/1.500/4.606R CoreLine - Indexable Drill - 1588038101
EDP # 0759569
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White)
Weight (1 pc.) 40.0 oz 1146 g
Product System Quatron

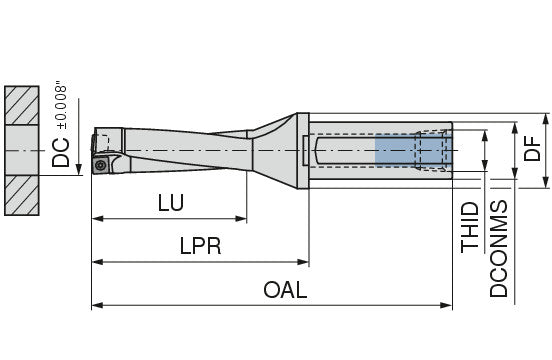

Cutting diameter / DC 1.5000" 38.100 mm
Mounting spigot diameter / DCONMS 1.2500" 31.750 mm
Flange diameter / DF 1.5400" 39.120 mm
Overall length / OAL 9.3920" 238.560 mm
Protruding length / LPR 6.1420" 156.010 mm
Usable length / LU 4.6060" 116.990 mm
Insert SOEX 120508
Thread designation inside / THID 1/4" NPT
torque moment 6.25 Nm


Tool Form:

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
