Description
Ceratizit Article Number: 1588041301
Ceratizit Material Number: 14238860
Ceratizit Komet Number (Unpacked): U12 24132
Ceratizit Komet Number (Packed): U1224132
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.25x3.25/W8344/1.625/4.961R KOMET - Indexable Insert Drill 1588041301 | |
| EDP # | 0759572 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 47.0 oz | 1328 g |

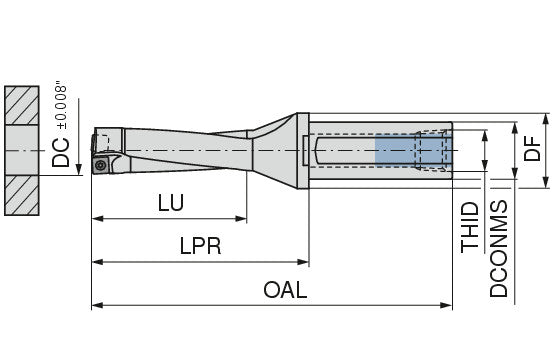

| Cutting diameter / DC | 1.6250" | 41.275 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5400" | 39.116 mm |
| Overall length / OAL | 9.7460" | 247.548 mm |
| Protruding length / LPR | 6.4960" | 164.998 mm |
| Usable length / LU | 4.9610" | 126.009 mm |
| Insert | SOEX 120508 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 6.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
