Description
Ceratizit Article Number: 1589614301
Ceratizit Material Number: 14240283
Ceratizit Komet Number (Unpacked): V57 51434
Ceratizit Komet Number (Packed): V5751434
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 1.25x3.25/W2910/0.562/1.405 R CoreLine - Indexable Drill - 1589614301 | |
| EDP # | 0759591 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 25.0 oz | 712 g |
| Productsystem | Trigon | |
| Machining process - Main Application | Drilling with a transverse hole | |

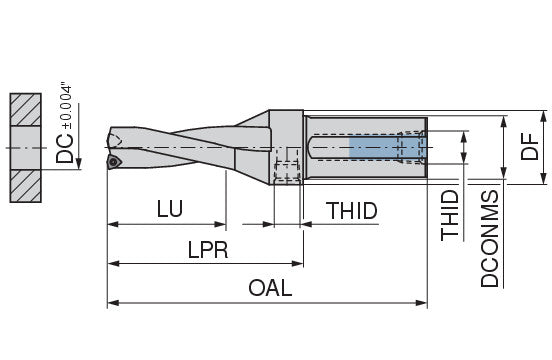

| Cutting diameter / DC | 0.5620" | 14.270 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5752" | 40.010 mm |
| Overall length / OAL | 6.1250" | 155.570 mm |
| Protruding length / LPR | 2.8750" | 73.020 mm |
| Usable length / LU | 1.4050" | 35.690 mm |
| Insert | WOEX 030204 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 0.62 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
