Description
Ceratizit Article Number: 1587926201
Ceratizit Material Number: 14241600
Ceratizit Komet Number (Unpacked): U11 42622
Ceratizit Komet Number (Packed): U1142622
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.25x3.25/W8323/1.031/2.126R KOMET - Indexable Insert Drill 1587926201 | |
| EDP # | 0759628 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 21.0 oz | 582 g |

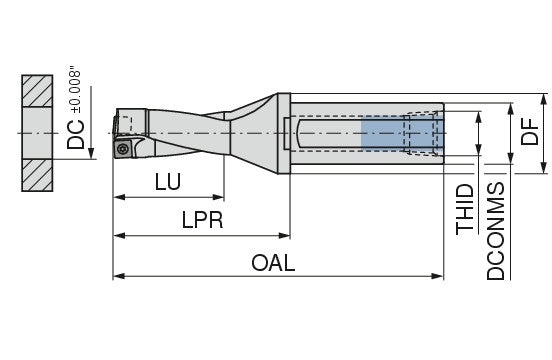

| Cutting diameter / DC | 1.0310" | 26.187 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5400" | 39.116 mm |
| Overall length / OAL | 6.3210" | 160.553 mm |
| Protruding length / LPR | 3.0710" | 78.003 mm |
| Usable length / LU | 2.1260" | 54.000 mm |
| Insert | SOEX 07T308 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 1.01 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
