Ceratizit KUB Quatron ABS50/W8332/1.156/3.484 R CoreLine - Indexable Drill - 1588029495 (0759640) [SKU:1588029495]

Ceratizit KUB Quatron ABS50/W8332/1.156/3.484 R CoreLine - Indexable Drill - 1588029495 (0759640) [SKU:1588029495]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 1588029495

Ceratizit Material Number: 14242065

Ceratizit Komet Number (Unpacked): U11 52940

Ceratizit Komet Number (Packed): U1152940

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit KUB Quatron ABS50/W8332/1.156/3.484 R CoreLine - Indexable Drill - 1588029495
EDP # 0759640
Workpiece Material(s) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) All Materials (White)
Weight (1 pc.) 28.0 oz 803 g
Product System Quatron

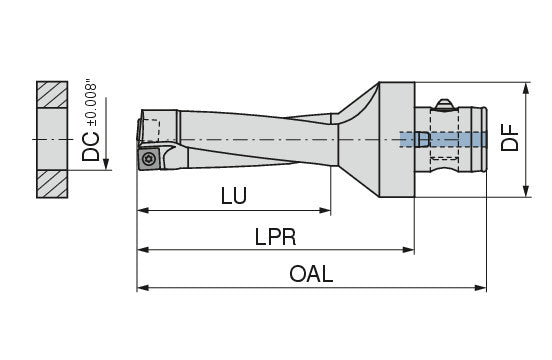

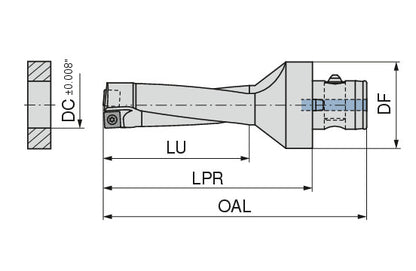

Cutting diameter / DC 1.1560" 29.360 mm
Mounting spigot diameter / DCONMS 1.1024" 28.000 mm
Flange diameter / DF 1.9685" 50.000 mm
Overall length / OAL 6.1410" 155.980 mm
Protruding length / LPR 4.9210" 124.990 mm
Usable length / LU 3.5430" 89.990 mm
Insert SOEX 090408
torque moment 2.25 Nm


Tool Form:

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
