Description
Ceratizit Article Number: 8732901053
Ceratizit Material Number: 14283918
Ceratizit Komet Number (Unpacked): 545.87.004
Ceratizit Komet Number (Packed): 54587004
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

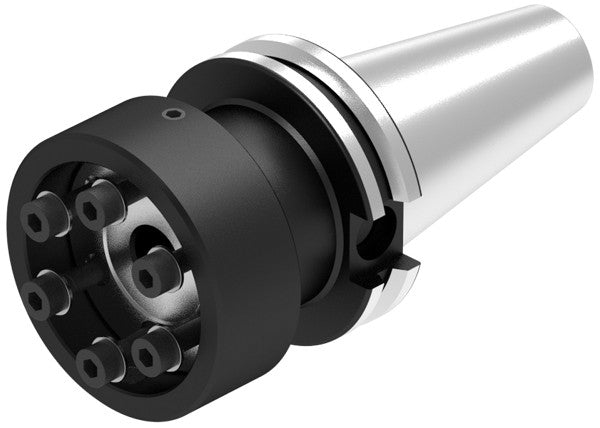

| Name | Ceratizit Compensating Holder DAH115 CAT50 Compensating 8732901053 | |
| EDP # | 0759663 | |
| Weight (1 pc.) | 194.0 oz | 5500 g |
| Machine interface size | CAT 50 | |

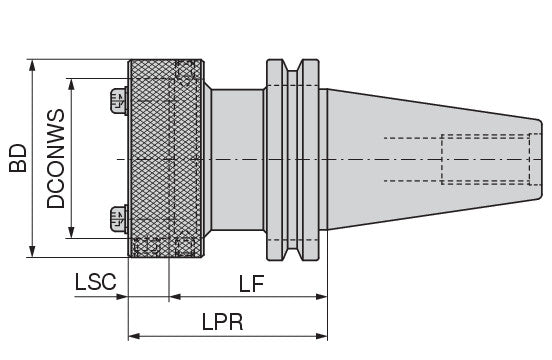

| Clamping diameter (DCONWS) / DCONWS | 3.9370" | 100.000 mm |
| Protruding length / LPR | 3.3504" | 85.100 mm |
| Neck diameter (BD) / BD | 4.5276" | 115.000 mm |
| Functional length / LF | 2.7165" | 69.000 mm |
| nominal size / SZID | DAH 115 | |
| Clamping length machine side / LSC | 0.6299" | 16.000 mm |
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
