Description
Ceratizit Article Number: 4989101399
Ceratizit Material Number: 14288653
Ceratizit Komet Number (Unpacked): 540.13.001
Ceratizit Komet Number (Packed): 54013001
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit RS Holder Cyl Inch 9.60-12.59 Long Holder For Rapid Head Set 4989101399 | |
| EDP # | 0759669 | |
| Weight (1 pc.) | 3.0 oz | 85.0 g |

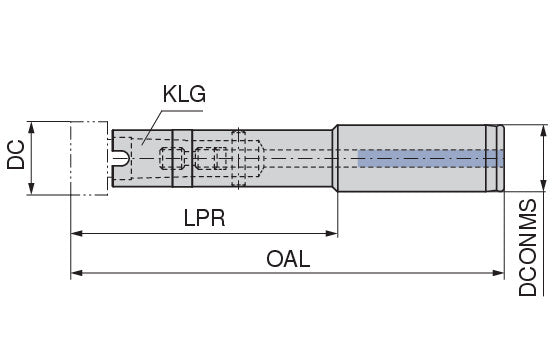

| Cutting edge Ø - range / DC | 0.0236" - 0.4957" | 0.600 - 12.590 mm |
| Cutting edge Ø -range - Inch / DC | 0.3780" - 0.4957" | 9.600 - 12.590 mm |
| Coupling Size | 1 | |
| Overall length / OAL | 6.2200" | 157.988 mm |
| Protruding length / LPR | 4.4490" | 113.005 mm |
| Mounting spigot diameter / DCONMS h6 | 0.5000" | 12.700 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
