Description
Ceratizit Article Number: 4989101699
Ceratizit Material Number: 14288654
Ceratizit Komet Number (Unpacked): 540.13.002
Ceratizit Komet Number (Packed): 54013002
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit RS Holder Cyl Inch 12.60-15.59 Long CoreLine For Rapid Head Set 4989101699 | |
| EDP # | 0759670 | |
| Weight (1 pc.) | 5.0 oz | 130 g |

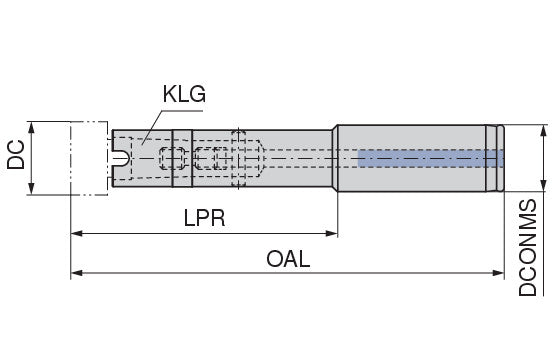

| Cutting edge Ø - range / DC | 12.60 - 15.59 | |
| Cutting edge Ø -range - Inch / DC | 0.4961 - 0.6138 | |
| Coupling Size | 2.0000" | 50.800 mm |
| Overall length / OAL | 6.2598" | 159.000 mm |
| Protruding length / LPR | 4.3701" | 111.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6250" | 15.880 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
