Description
Ceratizit Article Number: 4989104099
Ceratizit Material Number: 14288658
Ceratizit Komet Number (Unpacked): 540.13.006
Ceratizit Komet Number (Packed): 54013006
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit RS Holder Cyl Inch 30.11-40.00 Long Holder For Rapid Head Set 4989104099 | |
| EDP # | 0759674 | |
| Weight (1 pc.) | 28.0 oz | 780 g |

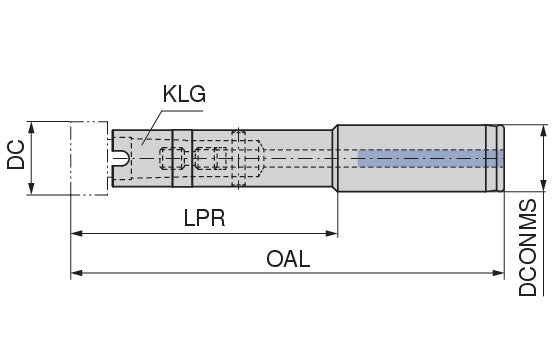

| Cutting edge Ø - range / DC | 0.0043" - 1.5748" | 0.110 - 40.000 mm |
| Cutting edge Ø -range - Inch / DC | 0.1854" - 1.5748" | 4.710 - 40.000 mm |
| Coupling Size | 6 | |
| Overall length / OAL | 8.8580" | 224.993 mm |
| Protruding length / LPR | 6.4960" | 164.998 mm |
| Mounting spigot diameter / DCONMS h6 | 1.0000" | 25.400 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
