Zedaro GRNGRAZER-4.000R0.76-20.0EAG25.4-G25CG1 (0759759)
Zedaro GRNGRAZER-4.000R0.76-20.0EAG25.4-G25CG1 (0759759)
Couldn't load pickup availability
Zedaro UID: 0759759
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

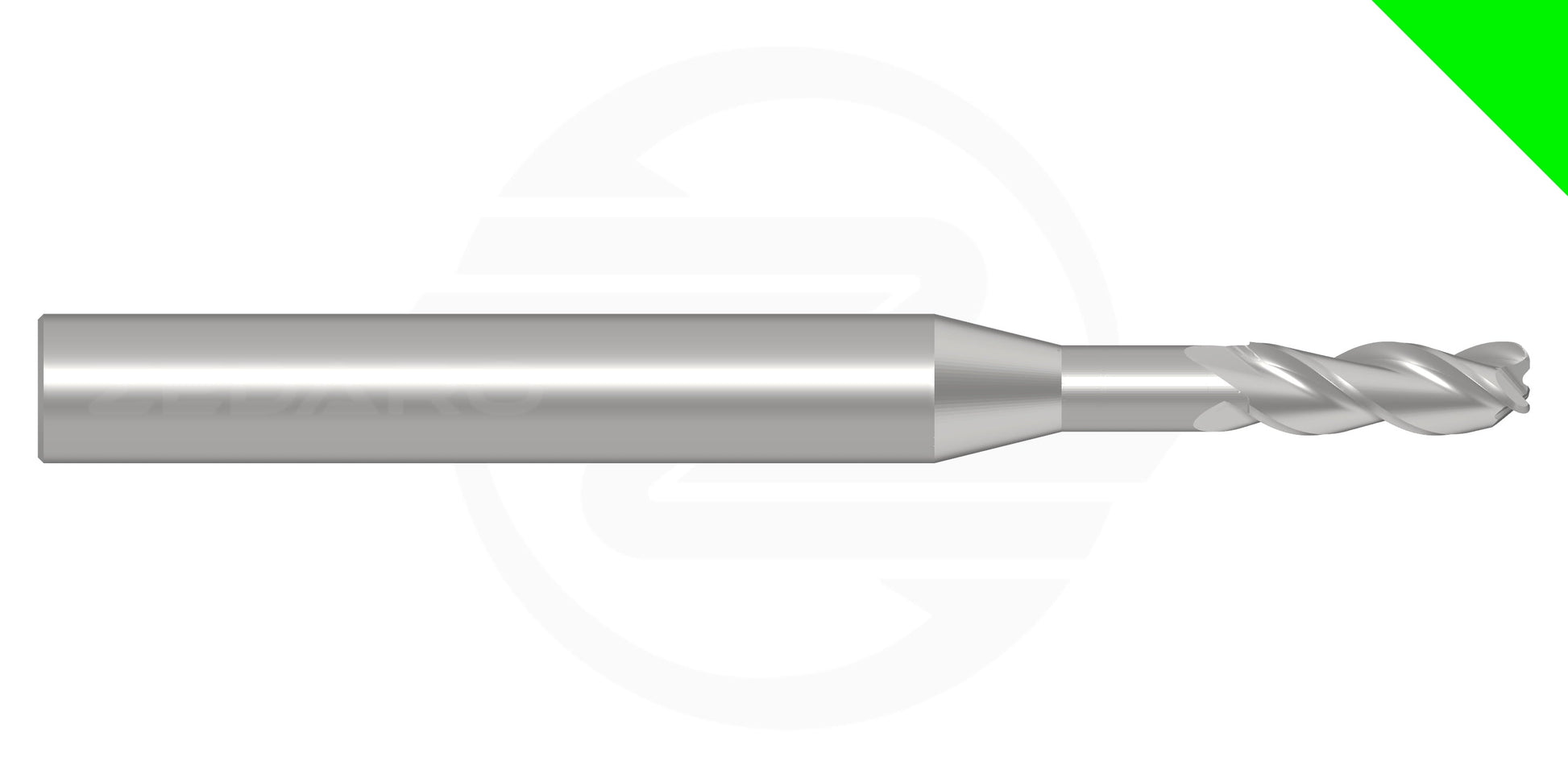

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

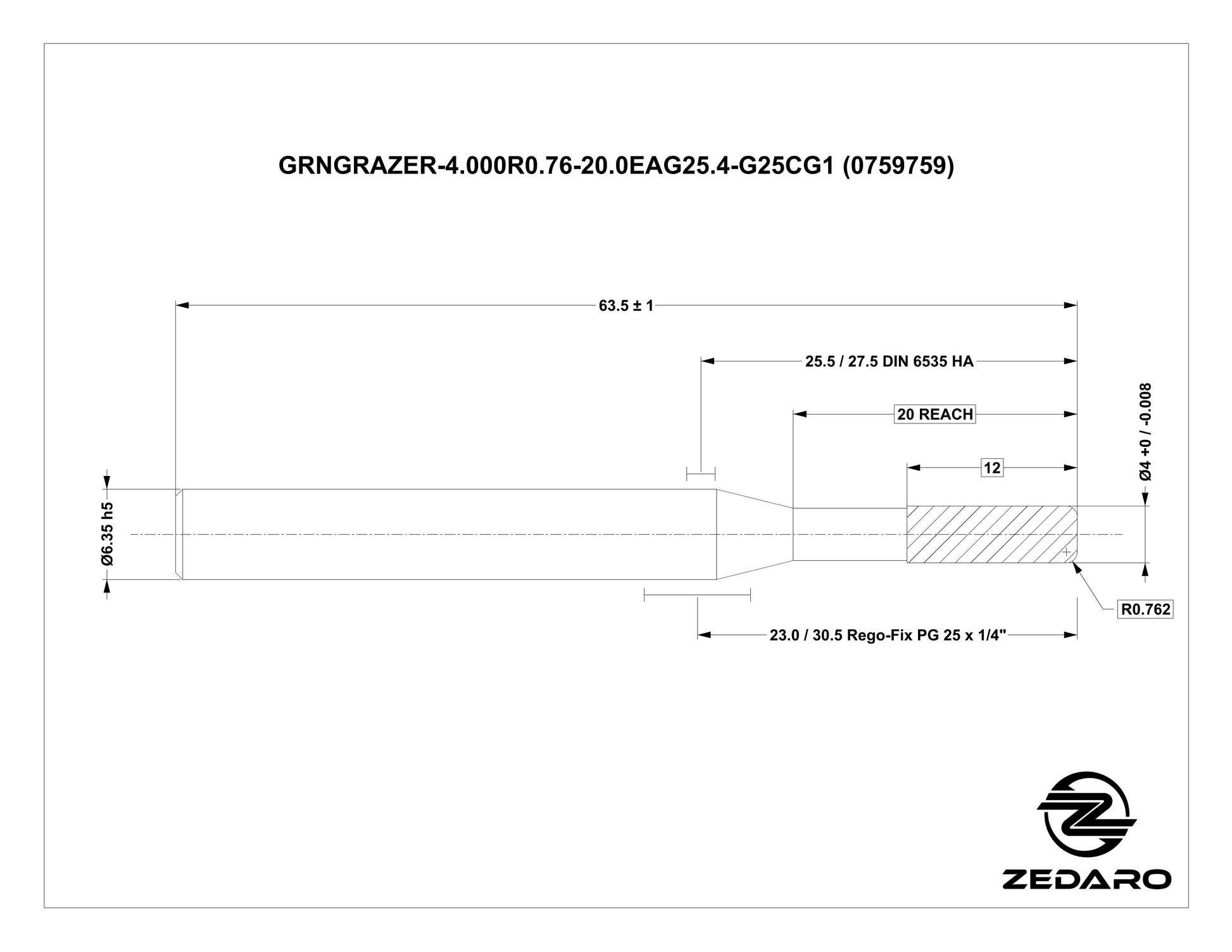

| Properties | ||
|---|---|---|
| Name | Zedaro GRNGRAZER-4.000R0.76-20.0EAG25.4-G25CG1 | |
| EDP # | 0759759 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.1575" | 4.000 mm |
| Corner Radius | 0.0300" | 0.762 mm |
| Application | Finish 3D Milling <20k RPM (Grazer) | |
| Form | R-TORUS | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.4724" | 12.000 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.7874" | 20.000 mm |
| Minimum Extension | 1.0000" | 25.400 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'EAG' refers to the bird species 'Eagle'.
