Description
Ceratizit Article Number: 1586060300
Ceratizit Material Number: 14366355
Ceratizit Komet Number (Unpacked): V46 56030
Ceratizit Komet Number (Packed): V4656030
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB CENTRON DH 2.375/60.3 CoreLine - Drill Head Ø 0.812-2.500 Inch - 1586060300 | |
| EDP # | 0759819 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 385 g |
| Productsystem | Centron | |
| Machining process - Main Application | Drilling on uneven surfaces | |

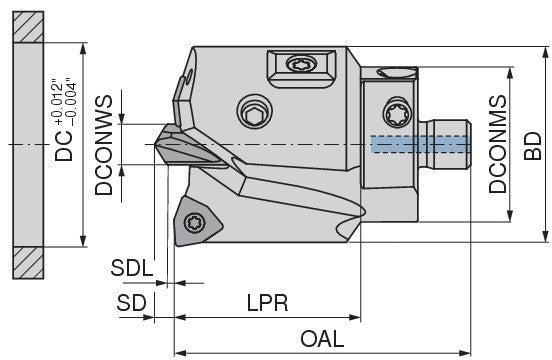

| Cutting diameter / DC | 2.3750" | 60.320 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.3940" | 10.010 mm |
| Step distance / SD | 0.1520" | 3.860 mm |
| Step diameter length / SDL | 0.0490" | 1.240 mm |
| Protruding length / LPR | 1.1800" | 29.970 mm |
| Overall length / OAL | 2.0500" | 52.070 mm |
| Neck diameter (BD) / BD | 2.3150" | 58.800 mm |
| Mounting spigot diameter / DCONMS | 2.1063" | 53.500 mm |
| Coupling Size | 53,5 | |
| torque moment | 6.25 Nm | |
| Insert | WOEX 080404 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
