Description
Ceratizit Article Number: 1087328203
Ceratizit Material Number: 14368925
Ceratizit Komet Number (Unpacked): U43 22820
Ceratizit Komet Number (Packed): U4322820
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron 32x60/W8028/28,2/87/R - Indexable Drill 1087328203 | |
| EDP # | 0759826 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 22.0 oz | 621 g |

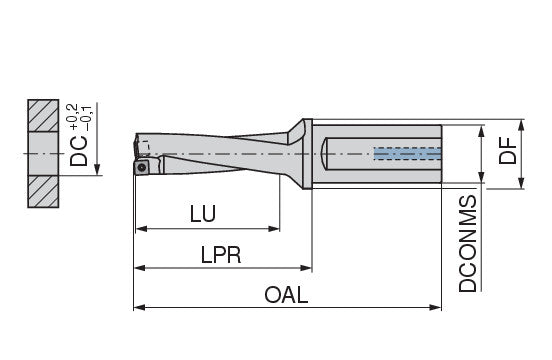

| Cutting diameter / DC | 1.1102" | 28.200 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Flange diameter / DF | 1.5354" | 39.000 mm |
| Overall length / OAL | 6.5354" | 166.000 mm |
| Protruding length / LPR | 4.1732" | 106.000 mm |
| Usable length / LU | 3.4252" | 87.000 mm |
| Insert | SOGX 09T308 | |
| torque moment | 2.25 Nm | |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Spot drilling a pointed contour | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
