Description
Ceratizit Article Number: 1588019895
Ceratizit Material Number: 14372717
Ceratizit Komet Number (Unpacked): U11 51980
Ceratizit Komet Number (Packed): U1151980
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron ABS50/W8318/0.781/2.362 R KOMET - Indexable Insert Drill 1588019895 | |
| EDP # | 0759837 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 20.0 oz | 577 g |

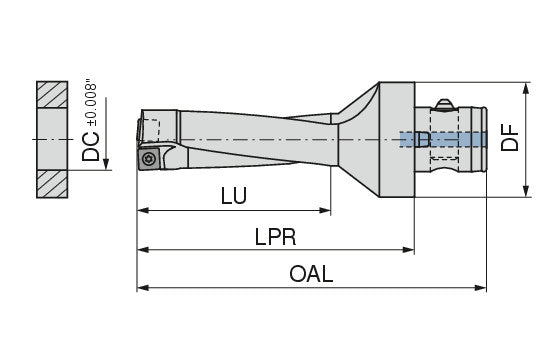

| Cutting diameter / DC | 0.7810" | 19.837 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 4.9600" | 125.984 mm |
| Protruding length / LPR | 3.7400" | 94.996 mm |
| Usable length / LU | 2.3620" | 59.995 mm |
| Insert | SOEX 060306 | |
| torque moment | 1.01 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
