Description
Ceratizit Article Number: 1589641301
Ceratizit Material Number: 14381119
Ceratizit Komet Number (Unpacked): V57 54132
Ceratizit Komet Number (Packed): V5754132
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

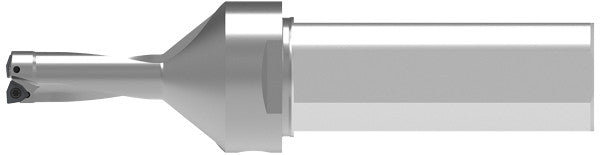

| Name | Ceratizit KUB Trigon 1.25x3.25/W2934/1.625/3.500 R KOMET - Indexable Insert Drill 1589641301 | |
| EDP # | 0759860 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 46.0 oz | 1301 g |

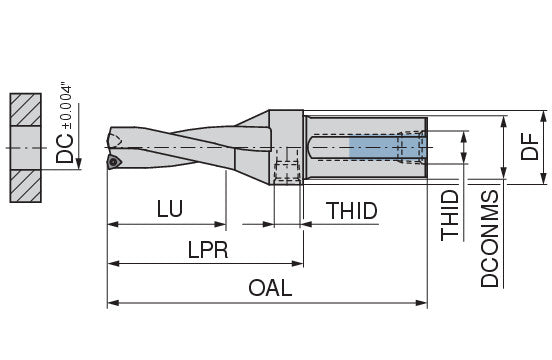

| Cutting diameter / DC | 1.6250" | 41.275 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5752" | 40.010 mm |
| Overall length / OAL | 8.3680" | 212.547 mm |
| Protruding length / LPR | 5.1180" | 129.997 mm |
| Usable length / LU | 3.5000" | 88.900 mm |
| Insert | WOEX 06T304 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
