Description
Ceratizit Article Number: 1589425401
Ceratizit Material Number: 14381502
Ceratizit Komet Number (Unpacked): V57 72542
Ceratizit Komet Number (Packed): V5772542
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 1.25x3.25/W2924/1.000/4.000 R KOMET - Indexable Insert Drill 1589425401 | |
| EDP # | 0759872 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 33.0 oz | 926 g |

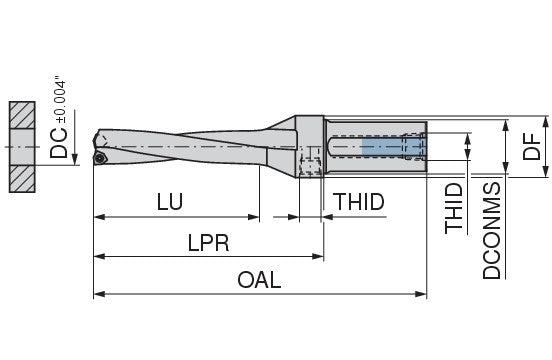

| Cutting diameter / DC | 1.0000" | 25.400 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5752" | 40.010 mm |
| Overall length / OAL | 8.6280" | 219.151 mm |
| Protruding length / LPR | 5.3780" | 136.601 mm |
| Usable length / LU | 4.0000" | 101.600 mm |
| Insert | WOEX 05T304 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.28 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
