Description
Ceratizit Article Number: 1588021400
Ceratizit Material Number: 14387242
Ceratizit Komet Number (Unpacked): U12 12142
Ceratizit Komet Number (Packed): U1212142
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.00x3.25/W8318/0.843/2.598R KOMET - Indexable Insert Drill 1588021400 | |
| EDP # | 0759899 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 380 g |

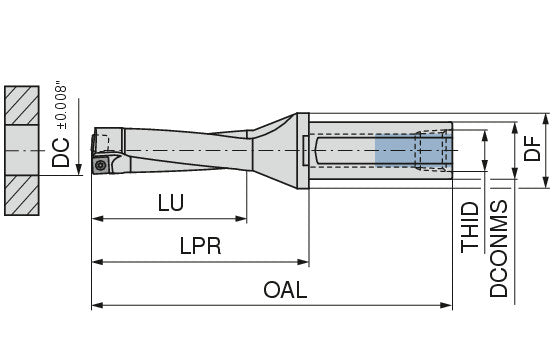

| Cutting diameter / DC | 0.8430" | 21.412 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Flange diameter / DF | 1.1800" | 29.972 mm |
| Overall length / OAL | 6.7930" | 172.542 mm |
| Protruding length / LPR | 3.5430" | 89.992 mm |
| Usable length / LU | 2.5980" | 65.989 mm |
| Insert | SOEX 060306 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.01 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
