Description
Ceratizit Article Number: 1588024600
Ceratizit Material Number: 14387246
Ceratizit Komet Number (Unpacked): U12 12462
Ceratizit Komet Number (Packed): U1212462
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.00x3.25/W8323/24,6/75/R CoreLine - Indexable Drill - 1588024600 | |
| EDP # | 0759903 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 21.0 oz | 596 g |
| Productsystem | Quatron | |

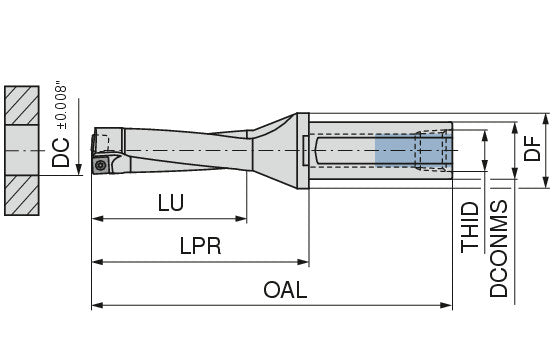

| Cutting diameter / DC | 0.9680" | 24.590 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Flange diameter / DF | 1.1800" | 29.970 mm |
| Overall length / OAL | 7.1480" | 181.560 mm |
| Protruding length / LPR | 3.8980" | 99.010 mm |
| Usable length / LU | 2.9530" | 75.010 mm |
| Insert | SOEX 07T308 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.01 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
