Description
Ceratizit Article Number: 1587429401
Ceratizit Material Number: 14403631
Ceratizit Komet Number (Unpacked): U44 82940
Ceratizit Komet Number (Packed): U4482940
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron 1.25"x3.25"/W8028/29,4/120/R KOMET - Indexable Insert Drill 1587429401 | |
| EDP # | 0759961 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 27.0 oz | 777 g |

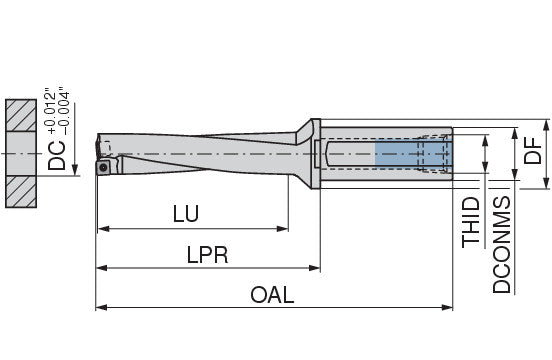

| Cutting diameter / DC | 1.1560" | 29.362 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5354" | 39.000 mm |
| Overall length / OAL | 8.8799" | 225.550 mm |
| Protruding length / LPR | 5.6299" | 143.000 mm |
| Usable length / LU | 4.7244" | 120.000 mm |
| Insert | SOGX 09T308 | |
| Thread designation inside / THID | 1/2" NPT | |
| torque moment | 2.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
