Description
Ceratizit Article Number: 1589366798
Ceratizit Material Number: 14405089
Ceratizit Komet Number (Unpacked): V14 76670
Ceratizit Komet Number (Packed): V1476670
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Drill ABS80/W2950/2.625/7.875 R KOMET Trigon - Indexable Insert Drill 1589366798 | |
| EDP # | 0759997 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 175.0 oz | 4970 g |

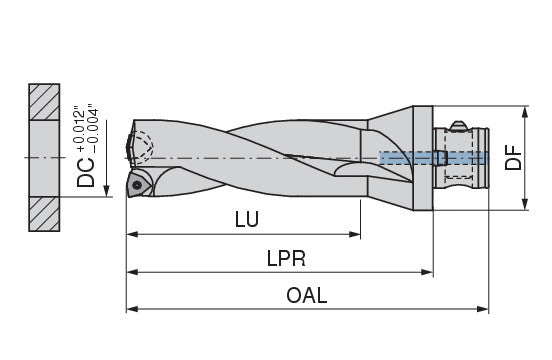

| Cutting diameter / DC | 2.6250" | 66.675 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
| Overall length / OAL | 11.7340" | 298.044 mm |
| Protruding length / LPR | 10.0410" | 255.041 mm |
| Usable length / LU | 7.8750" | 200.025 mm |
| Insert | WOEX 100504 | |
| torque moment | 4.3 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
