Description
Ceratizit Article Number: 1589369998
Ceratizit Material Number: 14405091
Ceratizit Komet Number (Unpacked): V14 76990
Ceratizit Komet Number (Packed): V1476990
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Drill ABS80/W2958/2.750/8.250 R CoreLine - Indexable - Trigon 1589369998 | |
| EDP # | 0759999 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 199.0 oz | 5652 g |
| Productsystem | Trigon | |
| Machining process - Main Application | Drilling with a transverse hole | |

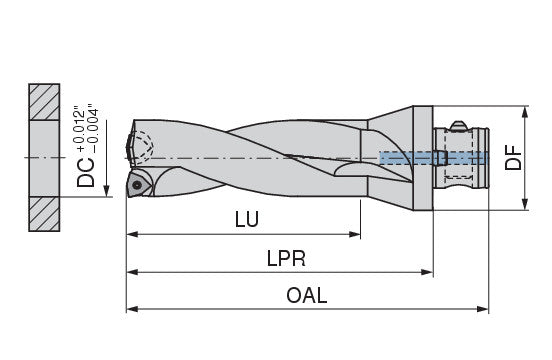

| Cutting diameter / DC | 2.7500" | 69.850 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
| Overall length / OAL | 12.5030" | 317.580 mm |
| Protruding length / LPR | 10.8100" | 274.570 mm |
| Usable length / LU | 8.2500" | 209.550 mm |
| Insert | WOEX 120608 | |
| torque moment | 6.25 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
