Description
Ceratizit Article Number: 6000510257
Ceratizit Material Number: 14414232
Ceratizit Komet Number (Unpacked): E32 20012
Ceratizit Komet Number (Packed): E3220012
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

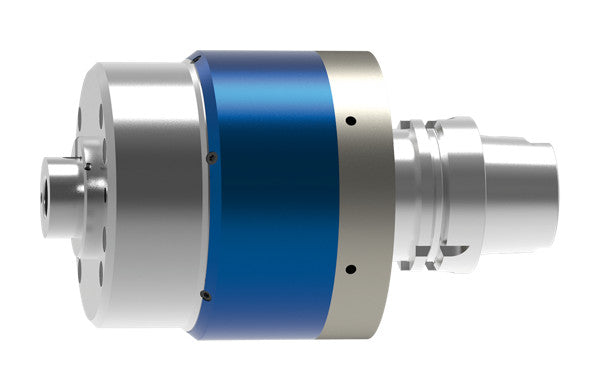

| Name | Ceratizit HPS115-HSK63-EM-ABS32-2-2 KomTr. U-axis KOMET KOMtronic High-performance System HPS-115-2 6000510257 | |
| EDP # | 0760011 | |
| Weight (1 pc.) | 282.0 oz | 7984 g |
| Coolant pressure, max. / CPX | 40 bar | |
| IP protection class / IPCL | IP67 | |
| Designation | UAS-HPS-115-2.ISO12164.63.ABS32.EM-2 | |

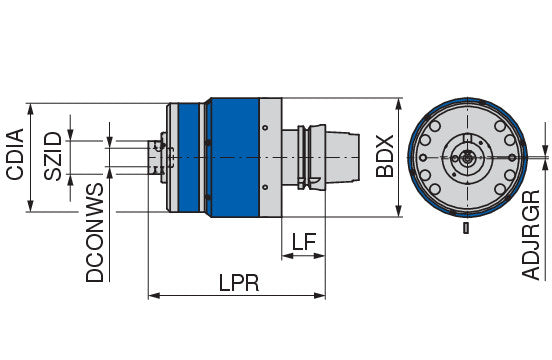

| Adjustment range radial - range / ADJRGR | 0.8268" | 21.000 mm |
| nominal size / SZID | ABS 32 | |
| Protruding length / LPR | 6.7323" | 171.000 mm |
| Functional length / LF | 1.6535" | 42.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.1024" | 28.000 mm |
| Collision diameter / CDIA | 4.1339" | 105.000 mm |
| Body diameter maximum / BDX | 4.5276" | 115.000 mm |
| Adjustment range radial / ADJRGR | 0.0787" | 2.000 mm |
| Rotational speed maximum / RPMX | 6000 1/min. | |
| Machine interface size | HSK-A 63 | |
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-A form is probably the most common in the HSK family, and features drive slots which serve both to increase torque capability and provide rotational indexing (unequal slots). External features provide an interface for automatic tool change grippers and carousels. There is a bore milled directly into the side of the interface for RFID chip placement, and a threaded internal passage for coolant-through operation.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
