Description
Ceratizit Article Number: 7850002081
Ceratizit Material Number: 14417648
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

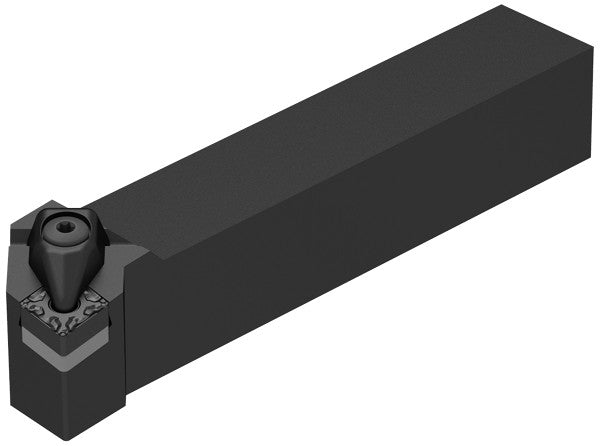

| Name | Ceratizit DCLNR 20-6DA-N CoreLine 95° Toolholder With Top Clamping 7850002081 | |
| EDP # | 0760027 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Shank height / H | 1.2500" | 31.750 mm |
| Shank width / B | 1.2500" | 31.750 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 1.6500" | 41.910 mm |
| Functional width / WF | 1.5000" | 38.100 mm |
| Clamping system | Top clamping for negative hole inserts | |
| holder form | DCLN 95° | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
