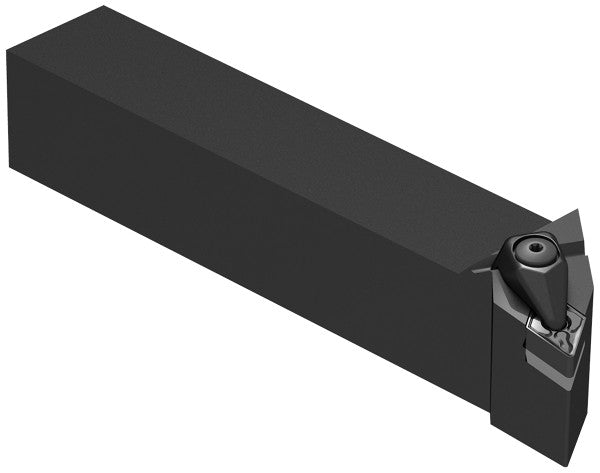

Ceratizit DDJNL 12-4BA-N CoreLine 93° Toolholder With Top Clamping 7850301294 (0760031)
Ceratizit DDJNL 12-4BA-N CoreLine 93° Toolholder With Top Clamping 7850301294 (0760031)
Couldn't load pickup availability
Ceratizit Article Number: 7850301294
Ceratizit Material Number: 14417653
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DDJNL 12-4BA-N CoreLine 93° Toolholder With Top Clamping 7850301294 | |
| EDP # | 0760031 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Shank height / H | 0.7500" | 19.050 mm |
| Shank width / B | 0.7500" | 19.050 mm |
| Overall length / OAL | 4.5000" | 114.300 mm |
| Head length / LH | 1.5350" | 38.990 mm |
| Functional width / WF | 1.0000" | 25.400 mm |
| Clamping system | Top clamping for negative hole inserts | |
| holder form | DDJN 93° | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
