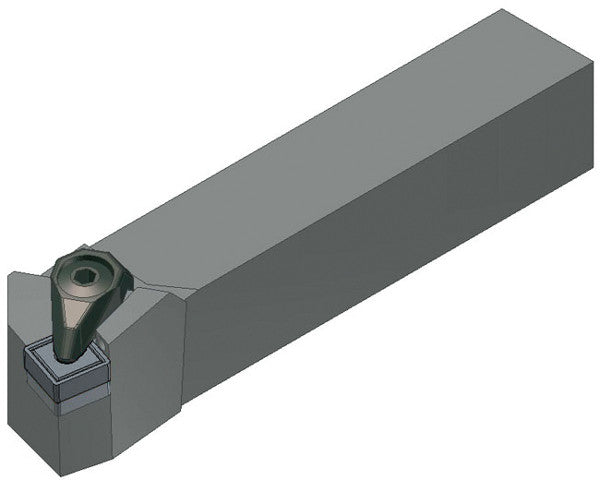

Ceratizit DSRNR 16-4DA-N CoreLine 75° Toolholder With Top Clamping 7850401690 (0760037)
Ceratizit DSRNR 16-4DA-N CoreLine 75° Toolholder With Top Clamping 7850401690 (0760037)
Couldn't load pickup availability
Ceratizit Article Number: 7850401690
Ceratizit Material Number: 14417659
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DSRNR 16-4DA-N CoreLine 75° Toolholder With Top Clamping 7850401690 | |
| EDP # | 0760037 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

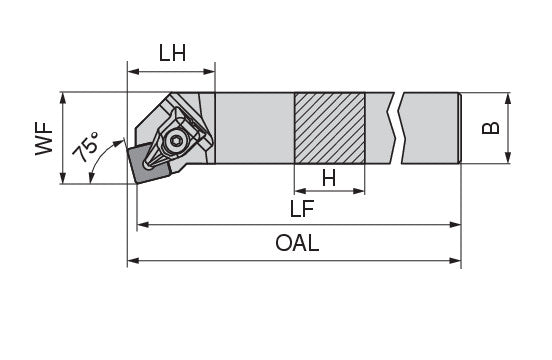

| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 1.0000" | 25.400 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 1.3800" | 35.050 mm |
| Functional width / WF | 1.1300" | 28.700 mm |
| Clamping system | Top clamping for negative hole inserts | |
| holder form | DSRN 75° | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
