Ceratizit Face Milling Cutter hi.aeQ D50; MaxiMill - Mills - SEC 12 5079612514 (0760139) [SKU:5079612514]

Ceratizit Face Milling Cutter hi.aeQ D50; MaxiMill - Mills - SEC 12 5079612514 (0760139) [SKU:5079612514]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5079612514

Ceratizit Material Number: 14438169

Ceratizit Komet Number (Unpacked): F56 20250

Ceratizit Komet Number (Packed): F5620250

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit Face Milling Cutter hi.aeQ D50; MaxiMill - Mills - SEC 12 5079612514
EDP # 0760139
Workpiece Material(s) Aluminum (Green)
Weight (1 pc.) 128.0 oz 3622 g
Product-Carbon-Footprint B
Product System SEC 12

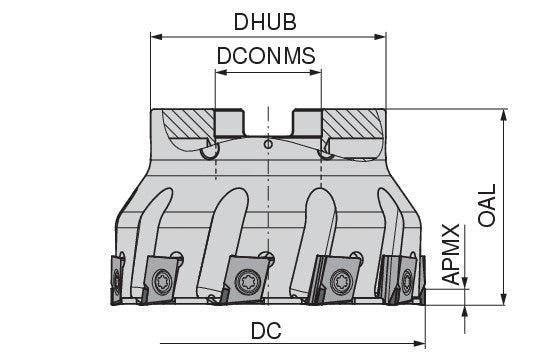

Depth of cut maximum / APMX 0.3150" 8.000 mm
Face mounted insert count / ZNF 14
Cutting diameter / DC 4.9213" 125.000 mm
Overall length / OAL 2.4803" 63.000 mm
Hub diameter / DHUB 3.5433" 90.000 mm
Mounting spigot diameter / DCONMS H6 1.5748" 40.000 mm
Insert ZNHW120504TR


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
