Description
Ceratizit Article Number: 5114700200
Ceratizit Material Number: 14438695
Ceratizit Komet Number (Unpacked): Q37 34480.0455
Ceratizit Komet Number (Packed): Q37344800455
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

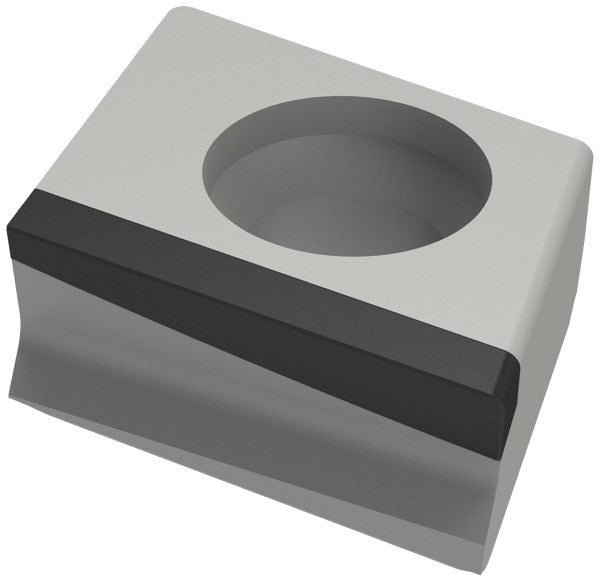

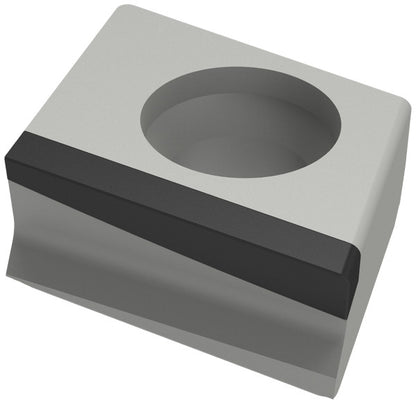

| Name | Ceratizit ZNHW 120504TR-A10-48 CTD4110 MaxiMill PDC Milling indexable Insert 5114700200 | |
| EDP # | 0760144 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 120504TR-A10-48 | |

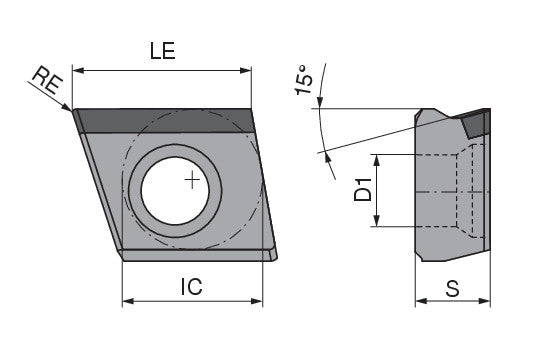

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge effective length / LE | 0.3937" | 10.000 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1909" | 4.850 mm |
| Cutting edge length / L | 0.4882" | 12.400 mm |
| Insert thickness / S | 0.2126" | 5.400 mm |
| Clearance angle major / AN | 0 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
