Description
Ceratizit Article Number: 7141500200
Ceratizit Material Number: 14443080
Ceratizit Komet Number (Unpacked): 14443 080
Ceratizit Komet Number (Packed): 14443080
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

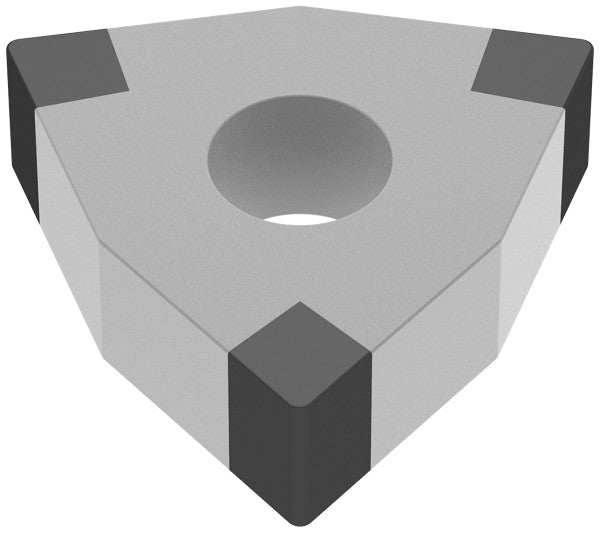

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WNGA 080404TN-020F_V5 CTBS05U CoreLine PcBN Turning indexable Insert 7141500200 | |
| EDP # | 0760169 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 080404TN | |

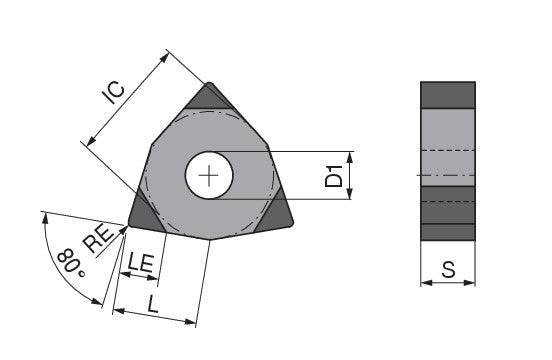

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3346" | 8.500 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 431TN | ||
| support chamfer angle / GB | 30 ° | |
| TCE (NOI) | V (3) | |
| Cutting edge effective length / LE | 0.1772" | 4.500 mm |
| Face land width / BN | 0.0079" | 0.200 mm |
| Size | 8.0000" | 203.200 mm |
| Designation | WNGA 080404 | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS05U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
