Description
Ceratizit Article Number: 7140880200
Ceratizit Material Number: 14443096
Ceratizit Komet Number (Unpacked): 14443 096
Ceratizit Komet Number (Packed): 14443096
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

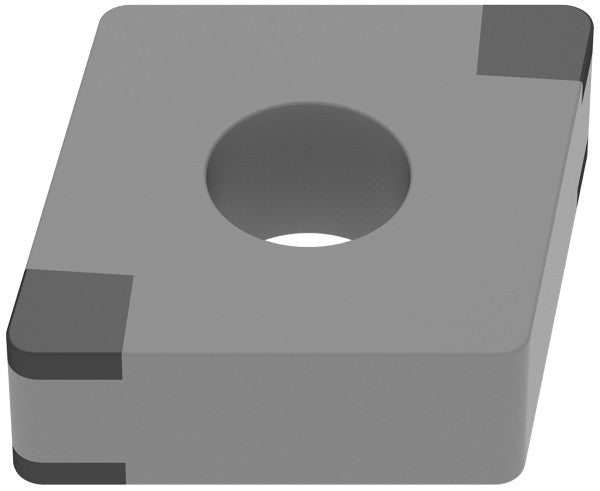

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CNGA 120408TN-009B_L3 CTBS10C CoreLine PcBN Turning indexable Insert 7140880200 | |
| EDP # | 0760178 | |
| Weight (1 pc.) | 0.4 oz | 10.8 g |
| designation | 120408TN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 432TN | ||
| support chamfer angle / GB | 10 ° | |
| TCE (NOI) | L (4) | |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Face land width / BN | 0.0035" | 0.090 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | CNGA 120408 | |
| Insert index count / NOI | 4.0000" | 101.600 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS10C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
