Description
Ceratizit Article Number: 7141360200
Ceratizit Material Number: 14443219
Ceratizit Komet Number (Unpacked): 14443 219
Ceratizit Komet Number (Packed): 14443219
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VNGA 160404SN-013E_L3 CTBH40C 7141360200 | |
| EDP # | 0760277 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 160404SN | |

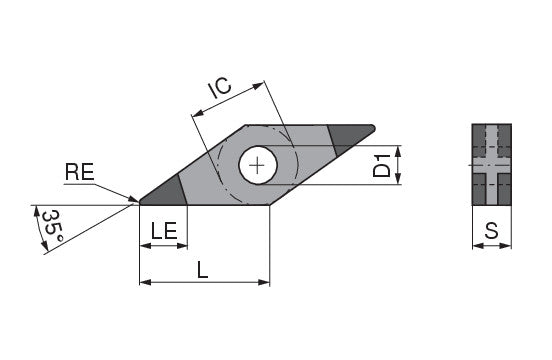

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6535" | 16.600 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1500" | 3.810 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | L (4) | |
| Cutting edge effective length / LE | 0.1102" | 2.800 mm |
| Face land width / BN | 0.0051" | 0.130 mm |
| Insert index count / NOI | 4 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
