Description
Ceratizit Article Number: 7141360600
Ceratizit Material Number: 14443223
Ceratizit Komet Number (Unpacked): 14443 223
Ceratizit Komet Number (Packed): 14443223
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

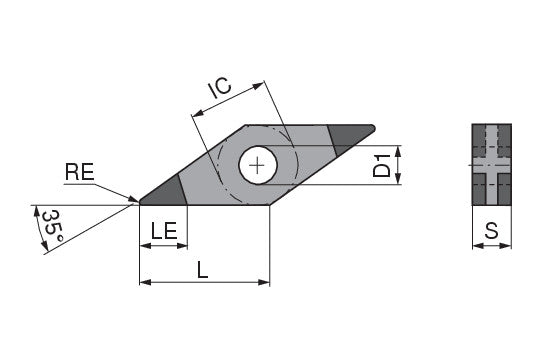

| Properties | ||
|---|---|---|
| Name | Ceratizit VNGA 160408SN-011D_L2 CTBH40C CoreLine PcBN Turning indexable Insert 7141360600 | |
| EDP # | 0760281 | |
| Weight (1 pc.) | 0.4 oz | 12.5 g |
| designation | 160408SN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6535" | 16.600 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1500" | 3.810 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 332SN | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | L (4) | |
| Cutting edge effective length / LE | 0.0866" | 2.200 mm |
| Face land width / BN | 0.0043" | 0.110 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | VNGA 160408 | |
| Insert index count / NOI | 4.0000" | 101.600 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
