Description
Ceratizit Article Number: 7140970200
Ceratizit Material Number: 14443238
Ceratizit Komet Number (Unpacked): 14443 238
Ceratizit Komet Number (Packed): 14443238
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

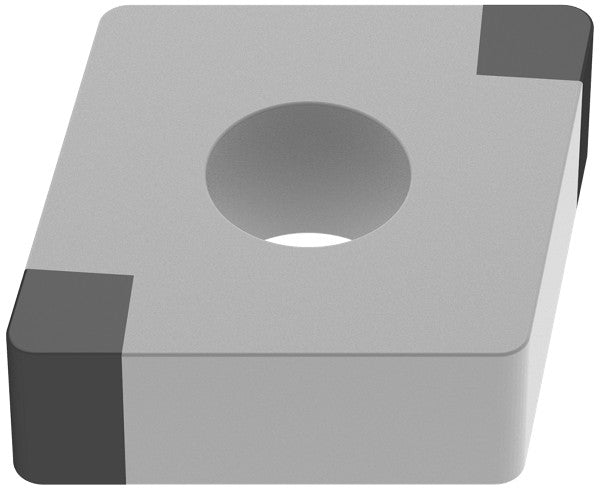

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CNGA 120412TN-008F_U2 CTBH41U CoreLine 7140970200 | |
| EDP # | 0760293 | |
| Weight (1 pc.) | 0.4 oz | 10.9 g |
| designation | 120412TN | |

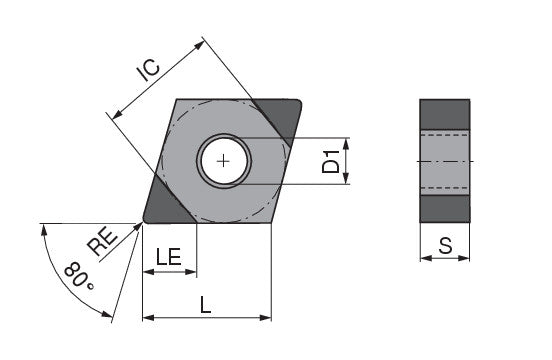

| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 433TN | ||
| support chamfer angle / GB | 30 ° | |
| TCE (NOI) | U (2) | |
| Cutting edge effective length / LE | 0.0945" | 2.400 mm |
| Face land width / BN | 0.0031" | 0.080 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | CNGA 120412 | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH41U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
