Description
Ceratizit Article Number: 7112720201
Ceratizit Material Number: 14443251
Ceratizit Komet Number (Unpacked): 14443 251
Ceratizit Komet Number (Packed): 14443251
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

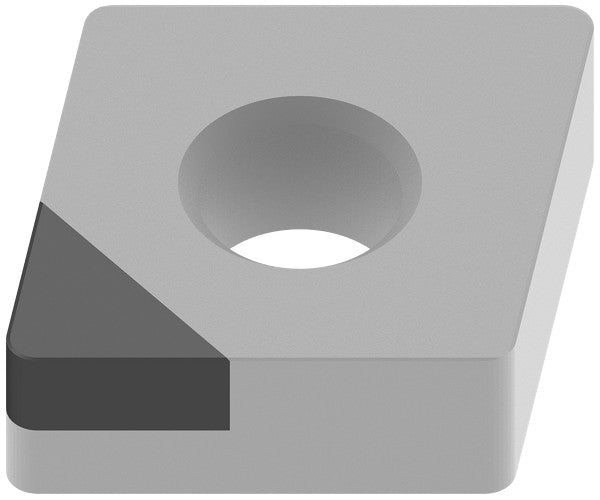

| Name | Ceratizit CNGA 120412FN_A6 CTDPS30 7112720201 | |
| EDP # | 0760305 | |
| Weight (1 pc.) | 0.4 oz | 10.9 g |

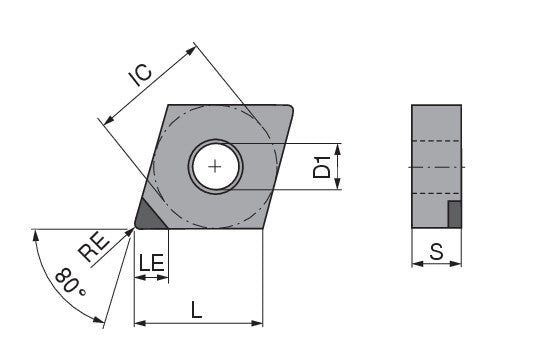

| designation | 120412FN | |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.2244" | 5.700 mm |
| Insert index count / NOI | 1 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTDPS30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
