Description
Ceratizit Article Number: 7142510000
Ceratizit Material Number: 14443261
Ceratizit Komet Number (Unpacked): 14443 261
Ceratizit Komet Number (Packed): 14443261
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

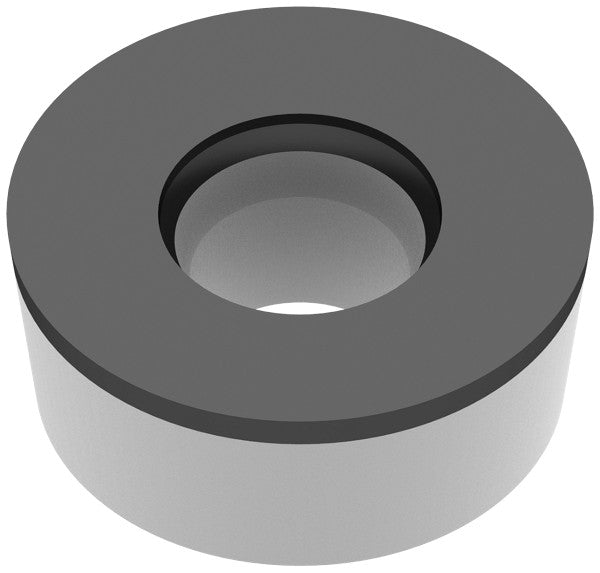

| Name | Ceratizit RCGW 1204M0TN-012D_F12 CTBS10U CoreLine PcBN Turning indexable Insert 7142510000 | |
| EDP # | 0760310 | |
| Weight (1 pc.) | 0.2 oz | 6.3 g |
| designation | 1204M0TN | |
| Corner radius / RE | 0.2362" | 6.000 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.4724" | 12.000 mm |
| 1204M0TN | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | F | |
| Cutting edge effective length / LE | 0.4724" | 12.000 mm |
| Face land width / BN | 0.0047" | 0.120 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | RCGW 1204M0 | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS10U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
