Description
Ceratizit Article Number: 7142610700
Ceratizit Material Number: 14443269
Ceratizit Komet Number (Unpacked): 14443 269
Ceratizit Komet Number (Packed): 14443269
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

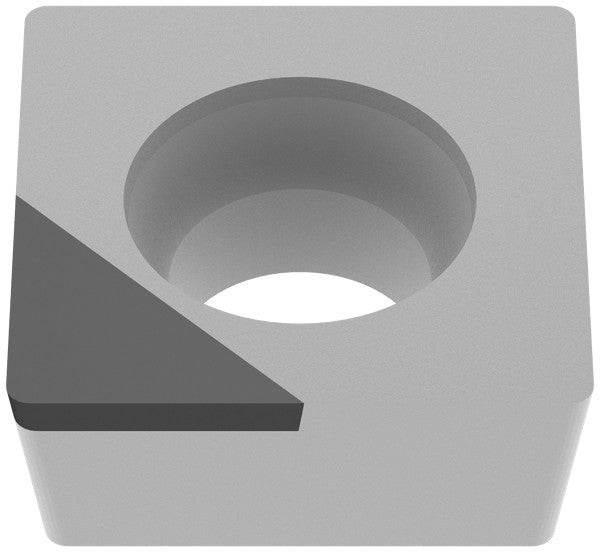

| Name | Ceratizit SCGW 120408TN-012D_A3 CTBS10U CoreLine PcBN Turning indexable Insert 7142610700 | |
| EDP # | 0760316 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 120408TN | |

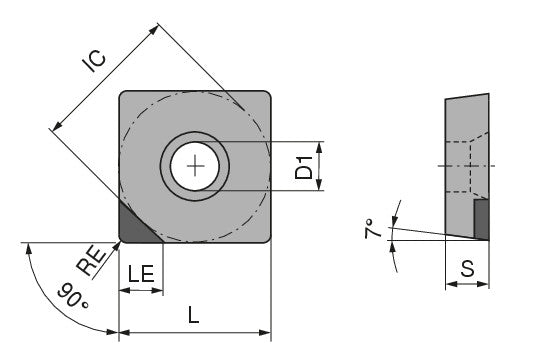

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 432TN | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1339" | 3.400 mm |
| Face land width / BN | 0.0047" | 0.120 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | SCGW 120408 | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS10U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
