Description
Ceratizit Article Number: 7114080100
Ceratizit Material Number: 14443368
Ceratizit Komet Number (Unpacked): 14443 368
Ceratizit Komet Number (Packed): 14443368
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

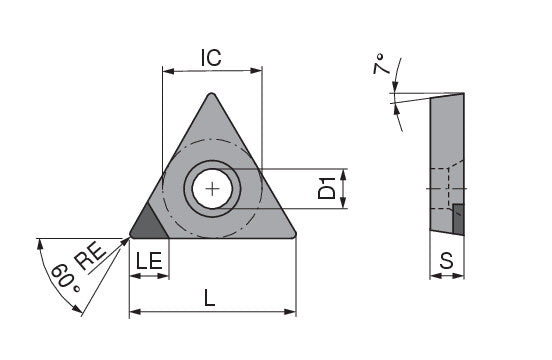

| Properties | ||
|---|---|---|

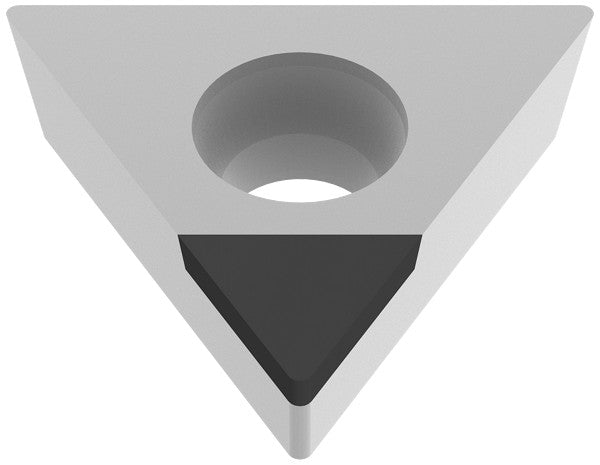

| Name | Ceratizit TCGW 090202FN_A4 CTBH40U CoreLine - - 7114080100 | |
| EDP # | 0760366 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 090202FN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3780" | 9.600 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| 1.81.5.5FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1496" | 3.800 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TCGW 090202 | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
