Description
Ceratizit Article Number: 7117210501
Ceratizit Material Number: 14443427
Ceratizit Komet Number (Unpacked): 14443 427
Ceratizit Komet Number (Packed): 14443427
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

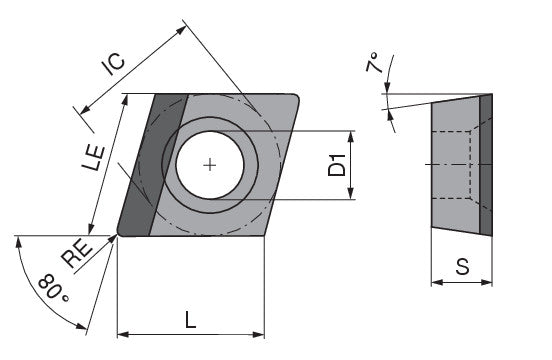

| Properties | ||
|---|---|---|

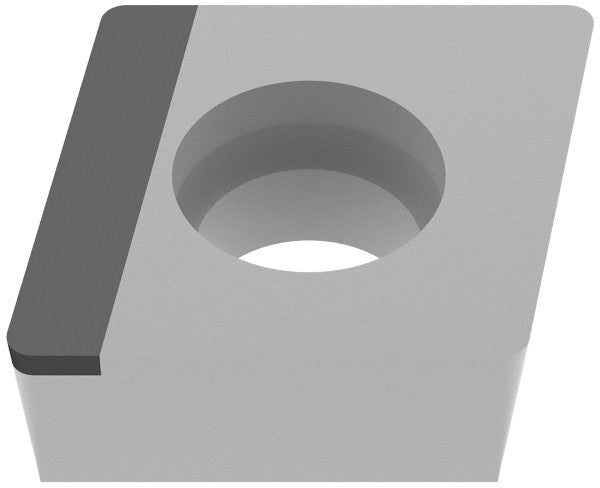

| Name | Ceratizit CCGW 120412FLL_A13 CTDPD20 7117210501 | |
| EDP # | 0760392 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 120412FLL | |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.5079" | 12.900 mm |
| Insert index count / NOI | 1 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTDPD20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
