Description
Ceratizit Article Number: 7118210401
Ceratizit Material Number: 14443444
Ceratizit Komet Number (Unpacked): 14443 444
Ceratizit Komet Number (Packed): 14443444
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

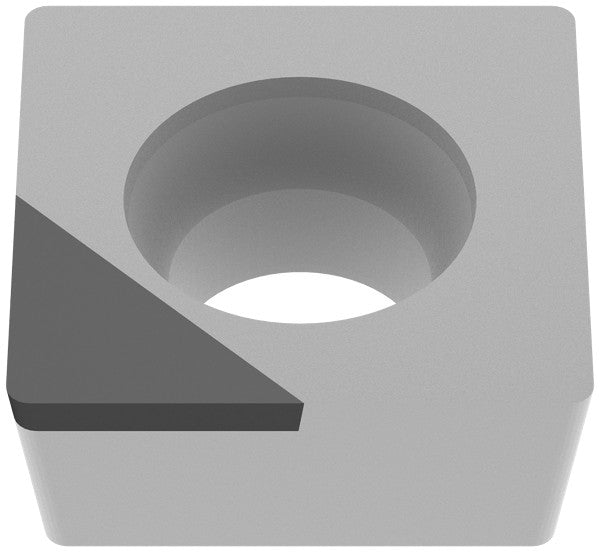

| Name | Ceratizit SCGW 120408FN_A4 CTDPD20 CoreLine - PCD Turning indexable Insert - 7118210401 | |
| EDP # | 0760407 | |
| Weight (1 pc.) | 0.3 oz | 9.4 g |
| designation | 120408FN | |

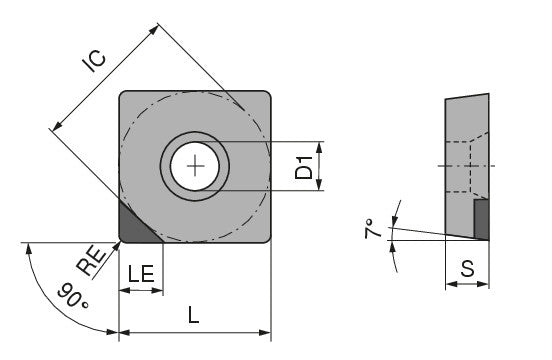

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 432FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1693" | 4.300 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | SCGW 120408 | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTDPD20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
