Description
Ceratizit Article Number: 7118410501
Ceratizit Material Number: 14443454
Ceratizit Komet Number (Unpacked): 14443 454
Ceratizit Komet Number (Packed): 14443454
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

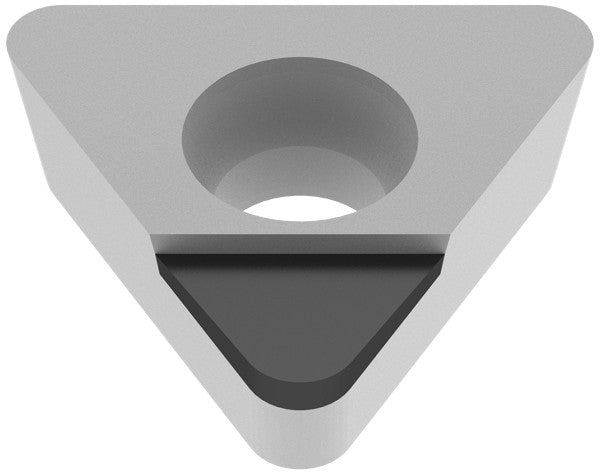

| Name | Ceratizit TCGT 16T308FN_A4 CTDPD20 CoreLine - PCD Turning indexable Insert - 7118410501 | |
| EDP # | 0760416 | |
| Weight (1 pc.) | 0.2 oz | 5.9 g |
| designation | 16T308FN | |

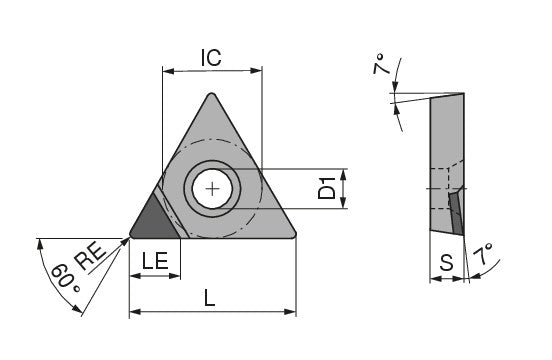

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6496" | 16.500 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 32.52FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1654" | 4.200 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | TCGT 16T308 | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTDPD20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
